MINI BALISE LED STELLA MONOCHROME

Mini Balise LED Encastrable

Eccelectro Schéma Encastré Stella

MINI BALISE LED STELLA MONOCHROME

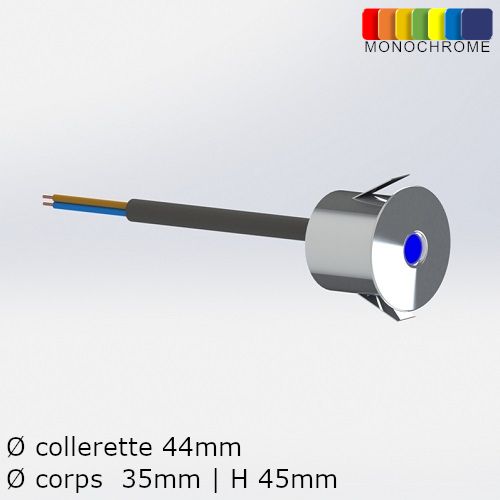

✔ Dimensions: Ø flange 44mm H45mm and Ø cylindrical body 35mm
✔ Power: 12-24V | 230v
✔ Applications: corridor, staircase, terrace markings...

The Stella Monochrome Mini Recessed LED Beacon multi support for beaconing and lighting incorporating a white Power LED in a waterproof aluminum body.

ACHIEVEMENTS :
• Tennis club de Chabris
• Terrazur Casino
• Longchamp Racecourse

Request your quote

Categories: Outdoor lighting, Indoor lighting, Ground Recessed luminaire

12-24V

MINI BALISE STELLA MONOCHROME 12-24V

Dimensions : Ø 44mm H45mm collar and cylindrical body ø 35mm
Number of LEDs: 1
Power : 2W
Body materials: Body in polished anodized aluminum or painted
Colors: Red | Green | Blue...
Lifespan: 50,000 hours L 70
Operational temperature: Maximum 50 ° C
Power supply: 12-24Vcc/ca
Electric class: Class III
Connection:HO7RNF cable
IK: IK10
IP : IP67
Fixation : Mounting by retaining clips
Compliance RoHS | EC | EN 60598-1
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France

230V

MINI BUILT-IN BEACON STELLA MONOCHROME 230V

Dimensions : Ø 44mm H45mm collar and cylindrical body ø 35mm
Number of LEDs: 1
Power : 2W
Body materials: Body in polished anodized aluminum or painted
Colors: Red | Green | Blue...
Color temperature: 2700K to 6000K
Lifespan: 50,000 hours L 70
Operational temperature: Maximum 50 ° C
Power supply: 230 Vca
Electric class: Class II
Connection:HO7RNF cable
IK: IK10
IP : IP67
Fixation : Mounting by retaining clips
Compliance RoHS | EC | EN 60598-1
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France

Application

• Hallway markup
• Markup of stairs
• Outdoor terrace markup

Technical sheet

Stella Recessed Mini LED Beacon Data Sheet (PDF)
Stella Technical Data sheet EN (PDF)
