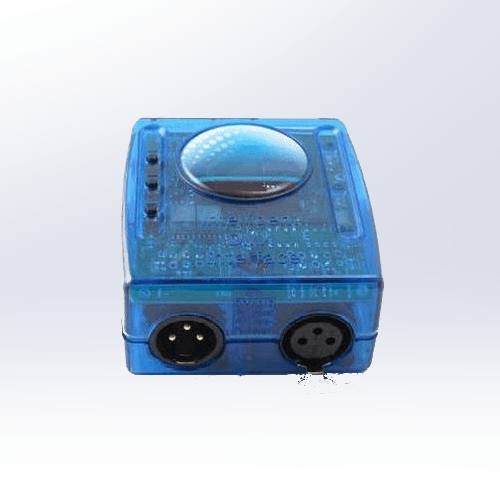

PILBOX

Driver PILBOX eclairage LED DMX

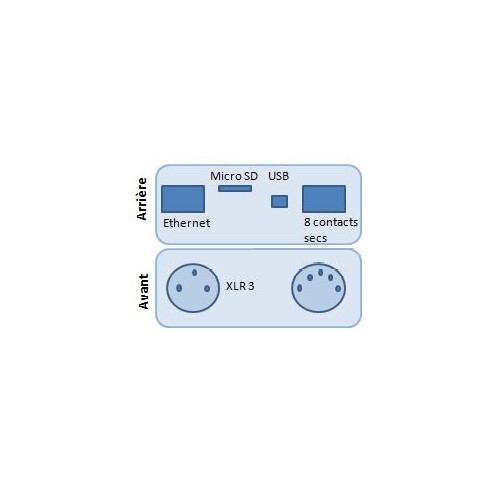

Eccelectro - Schema Driver PILBOX

PILBOX

✔ Connectors: XLR3 + MINI USB + HE10
✔ Protocol : DMX 256 or 512 (option)
✔ Applications: Dynamic Architectural Lighting...

Electronic generator fixed or dynamic signal according to the DMX protocol. Connection to standard mini USB and XLR.

ACHIEVEMENTS :
• Technicentre SNCF Nevers

Request your quote

Category: Drivers & Controllers

Description

Pilbox Driver

Dimensions : 79*92*43mm
Materials: computer case
Operational temperature: -20 ° C to + 50 ° C
Power supply: 220V with external transformer supplied
Power consumption : 5W
Electric class: Class II
Socket connection: 220V
Connectors : XLR3 + MINI USB + HE10
Interface PC : MAC and windows
Protocol: DMX 256 or 512 optional
IK: IK01
IP : IP20
Compliance: RoHS | WHAT | WHY
Warranty: 3 years
Manufacturing location: France

Application

• Technical lighting
• Dynamic Architectural lighting

Technical sheet

Pilbox Technical Sheet (PDF)
Pilbox Datasheet EN (PDF)
