MINI MONOCHROME CYCLOPE FLUSHED BEACON - Eccelectro

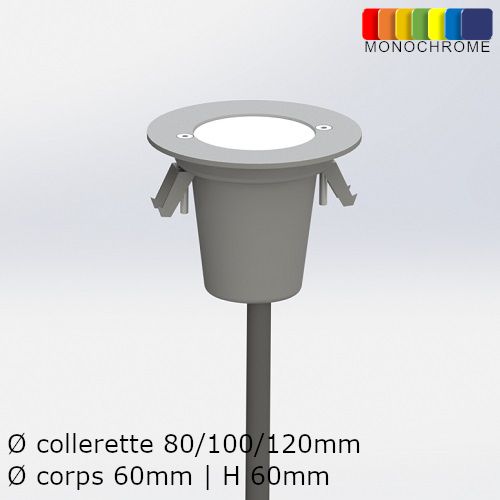

GROUND RECESSED SPOTLIGHT MONOCHROME CYCLOPE

✔ Dimensions : Ø collar 80 to 120mm et Dim body H60 x Ø60mm
✔ Alimentation : 24Vca/cc or 230Vca
✔ Applications: interior/exterior signage, facade...

Recessed LED Spotlight Red, Green, Blue... waterproof with a power led resinated in a compact cast aluminium body. Its clear or sandblasted diffusing porthole allows it to be used as a spotlight or beacon.

Request your quote

Categories: Architectural Lighting, Outdoor lighting, Indoor lighting, Ground Recessed luminaire

80mm diameter

Recessed LED Spotlight 80mm

Maximum load: 400kg
Collar: Round ø80mm
Dimensions : H60 x ø60mm
Number of LEDs: 1
Power : <2W
Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
Colors: Blue | Red | Green | Amber | Orange ...
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to +60°C
Power supply: 24Vca/cc or 230Vca
Electric class: Class III or class II
Connection: HO7RNF 2x1mm² cable
IK: IK10
IP : IP67
Optional fixing: Deep recess box (70mm)
Compliance : RoHS
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France

100x100mm square

Recessed LED Spotlight 100mm

Maximum load: 400kg
Collar: 100*100mm square
Dimensions : H60 x ø60mm
Number of LEDs: 1
Power : <2W
Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
Colors: Blue | Red | Green | Amber | Orange ...
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to +60°C
Power supply: 24Vca/cc or 230Vca
Electric class: Class III or class II
Connection: HO7RNF 2x1mm² cable
IK: IK10
IP : IP67
Optional fixing: Deep recess box (70mm)
Compliance : RoHS
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France

120mm diameter

Recessed LED Spotlight 120mm

Maximum load: 2.5 tons
Collar: Round ø120mm
Dimensions : H60 x ø60mm
Number of LEDs: 1
Power : <2W
Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
Colors: Blue | Red | Green | Amber | Orange ...
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to +60°C
Power supply: 24Vca/cc or 230Vca
Electric class: Class III or class II
Connection: HO7RNF 2x1mm² cable
IK: IK10
IP : IP67
Optional fixing: Deep recess box (70mm)
Compliance : RoHS
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France
