✔ Dimensions : H25mm xØ16mm
✔ Power: 220Vca | 350mA
✔ Applications: Indoor circulation, Handrail…

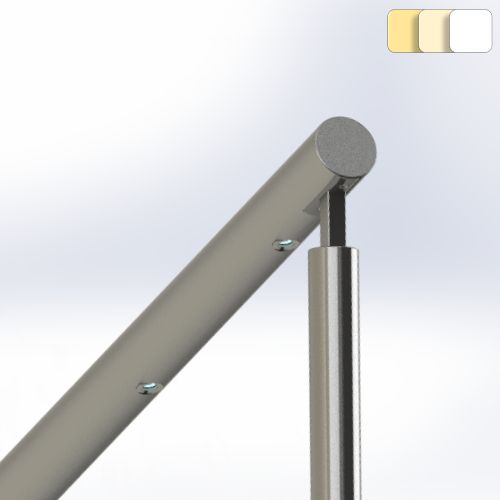

Walix beacon to be embedded in Handrail by screwing with a directional luminous flux symmetrical in diving to illuminate on the ground. Connection in series to form chains of spotlights powered by a single power supply.
ACHIEVEMENTS :
• Longchamp Racecourse
LED Architectural Marker Wallix for Main Current LED
Dimensions : Ø16mm H25mm
Number of LEDs: 1
Power: 1.2W
luminous flux: 100lm
Materials body : Aluminium body with M16 threading | optional 316L stainless steel
Glass materials: Glass PMMA flush UV
Color: White
Color temperature: 3000K | 4000K | 6000K
Lifespan: 50,000 hours L 70
Operational temperature: Maximum 50 ° C
Power supply: 220Vca | 350mA
Electric class: Class II
Connection: 2 threads 20cm
IK: IK10
IP : IP67
Compliance: RoHS | CE | EN 60598-1
Incandescent wire test: 850°C
Warranty: 3 years
Manufacturing location: France
• Interior circulation lighting
• Spot LED Main courante
• Circulation PMR
Walix LED Handrail Data Sheet (PDF)
