LUMI RAMP C WHITE | H06W15 - Eccelectro

LUMI RAMP C WHITE | H06W15

✔ Dimensions: Section 06 * 15mm | Max length 3m
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

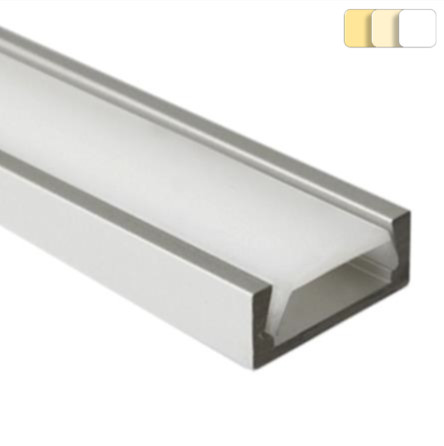

LED Strip Aluminium thin Lumi’Ramp C H06W15 equipped with Lumi White (White LEDs) in an anodised aluminium profile with polyurethane waterproof encapsulation. Thanks to its tailor-made dimensions this ruler allows you to realize all your interior and exterior projects. Contact us to configure your custom-made strips.

Request your quote

Categories: Architectural Lighting, Outdoor lighting, Indoor lighting, LED Strips Profiles

60LEDs / meter - 12W

Batten H06W15 - 12W Recessed

Dimensions : Section 06 * 15mm | Max length 3m
Number of LEDs: 60 LED/m
Power : 12W
Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
Color: White
Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
IRC : 80
luminous flux: 1000lm/m
Gradable : Yes
Angle : 120°
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to 50°C
Tension: 24Vcc
Electric class: Class III
Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
IK: IK10
IP : IP67
Fixation : By stainless steel or composite clips
Glow wire test 850°C
Warranty: 3 years

120LEDs / meter - 8W

Batten H06W15 - 8W Recessed

Dimensions : Section 06 * 15mm | Max length 3m
Number of LEDs: 120 LED/m
Power : 8W
Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
Color: White
Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
IRC : 80
luminous flux: 350lm/m
Gradable : Yes
Angle : 120°
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to 50°C
Tension: 24Vcc
Electric class: Class III
Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
IK: IK10
IP : IP67
Fixation : By stainless steel or composite clips
Glow wire test 850°C
Warranty: 3 years
