LED STRIP PROFILE LUMI'RAMPE RGB

LED STRIP PROFILE LUMI'RAMPE RGB

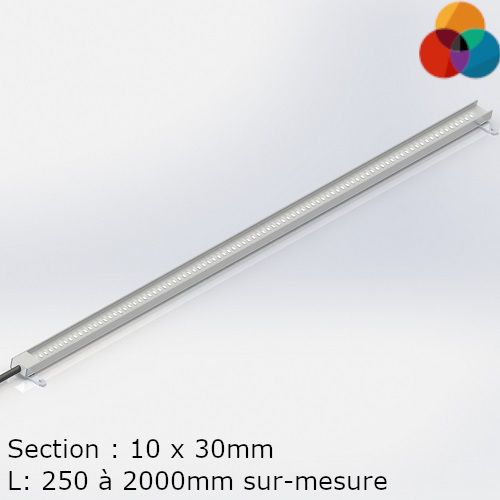

✔ Dimensions: 250 to 2000mm bespoke | section 10x30mm
✔ Waterproofing: IP67
✔ Applications: Architectural Lighting

LED Strip Profile waterproof equipped with multi-chip LEDs RGB in an aluminum profile

ACHIEVEMENTS :
Centre Commercial Beaugrenelle
Mayor of Chaponost

Description

Led Strip Profile Lumi’Rampe RGB PROFESSIONAL LED IP67

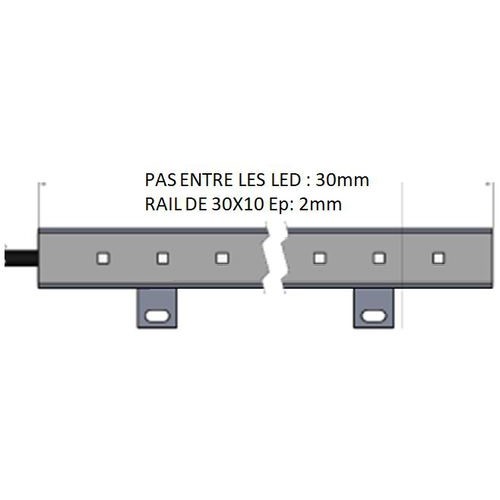

  • Dimensions : Lg from 250mm to 2000mm bespoke | section 10x30mm
  • Number of LEDs: 60 LED/m
  • Power: 20W/m
  • Body materials: anodised aluminum profile and PU resin
  • Color: RGB
  • Angle : 180°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° C to + 50 ° C
  • Power supply: 24V cc
  • Dimming / Steering: PWM | DMX
  • Electric class: Class III
  • Connection: H05 Cable 4 * 0.75mm²
  • IK: IK10
  • IP : IP67
  • Fixation : 2 points
  • Compliance: RoHS | CE | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Architectural lighting

Technical sheet

Lumi Ramp RGB Datasheet (PDF)
Lumi Rampe RGB Data Sheet EN (PDF)
