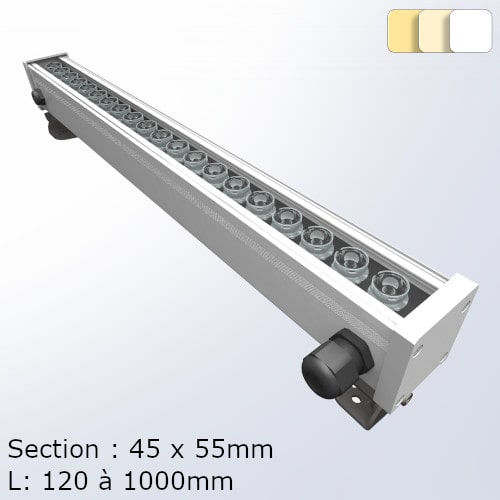

WALLWASHER POWER RAMP EVO WHITE

✔ Dimensions : 12cm, 30cm, 50cm, 100cm | section 45*55 mm
✔ Waterproofing: IP65
✔ Applications: wallwasher, window frame lighting, high bay lighting...

LED Strip Profile LED Wallwasher made of anodized or lacquered aluminum and UV polycarbonate to withstand shocks and weather. Very compact linear luminaire with integrated or remote power supply for architectural enhancement.
Large choice of optics for remarkable homogeneity. Variable color temperature from 2700K to 7000K.

ACHIEVEMENTS:
• Paris Defense Arena
• Deauville Racecourse

Request your quote

Description

Réglette Wallwasher Power Ramp LED Professional Lighting Architectural lighting

Dimensions : Lg. 120mm(4LED), 300mm(12LED), 500mm(20LED), 1000mm(40LED) | section 45*55 mm
Number of LEDs: 4 to 40 LEDs
Power : 10W to 72W
Body materials: Body in aluminium anodized or lacquered paint anti corrosion
Glass materials: Glass flush clear anti UV polycarbonate
Color: White
Color temperature: 2700K to 6500K
Symmetrical beam: 8° | 2*5°| 20°| 35°| 50°
Elliptical beam: 15°*50°
Lifespan: 50,000 hours L 70
Operational temperature: Maximum 50 ° C
Power supply: 24V | 220Vca
Dimming / Steering: DMX addressable auto available
Electric class: Class III and class II according to model
Connection: Built-in power with electronic surge protection, double fast connectors for wiring through. Cable 2x0.75mm² | 4x0.75mm² | 5x0.75mm² and double PE polyamide Entry/Exit
IK: IK10
IP : IP65
Fixation : Laying on fixed or adjustable foot with locking screw
Compliance RoHS | EC | EN 60598-1
Glow wire test 850°C
Warranty: 5 years
Manufacturing location: France

Application

• Hallway markup
• Markup of stairs
• Outdoor terrace markup
